Common Fault Codes in 4-Sensor TPMS Systems: Diagnosis and Solutions

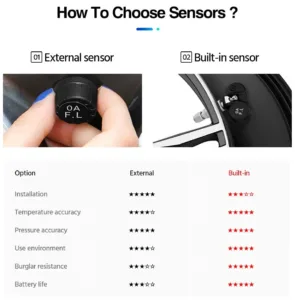

A 4-sensor Tire Pressure Monitoring System (TPMS) uses individual pressure sensors in each wheel to provide precise, real-time data. When the system detects an issue, it stores Diagnostic Trouble Codes (DTCs) that can be read with an OBD2 scanner. Understanding these codes is crucial for accurate diagnosis and repair. The most common codes relate to sensor communication failures, low battery warnings, and system malfunctions.
1. Understanding TPMS Fault Code Structure
TPMS DTCs follow a standardized format, typically beginning with a letter indicating the system domain:
- B-Codes (Body): Most TPMS fault codes fall under the “B” category, as TPMS is considered a body control function.
- P-Codes (Powertrain): Some manufacturers, like Audi/VW, use P-codes for TPMS-related issues.
- Manufacturer-Specific Codes: The second digit “1” indicates a manufacturer-specific code, while “0” indicates a generic SAE code. Many TPMS codes are manufacturer-specific.
The code provides a specific clue: for example, a code pointing to a general signal failure from 1-3 sensors, while another indicates a low sensor battery.
2. Most Common 4-Sensor TPMS Fault Codes
The table below details the prevalent fault codes, their triggers, symptoms, and recommended actions.
| Fault Code | Code Description | What It Means | Common Causes | Typical Symptoms & Diagnosis | Recommended Action |
|---|---|---|---|---|---|
| B124D:02 (Ford, GM, others) | Tire Pressure Sensor: General Signal Failure | The vehicle’s Body Control Module (BCM) or TPMS receiver is not receiving a valid signal from one, two, or three of the four tire pressure sensors. |
| The TPMS warning light typically flashes for 70 seconds upon ignition, then remains solid. The instrument cluster may display a message like “TIRE PRESSURE SENSOR FAULT”. A scan tool will show which specific sensor(s) are not communicating. |
|
| B1182:00 (Ford, others) | Tire Pressure Monitoring System: No Sub Type Information | The BCM/Tire Pressure Monitor (TPM) module is not receiving signals from all four TPMS sensors. This indicates a complete system communication failure. |
| The TPMS warning light is on solid. The display may show “TIRE PRESSURE MONITOR FAULT” or dashes for all tire pressures. A system scan shows no communication with any sensor. |
|
| B1251:00 (Ford, others) | Tire Pressure Sensor Low Battery | One or more sensors have transmitted a “low battery” warning signal. The sensor’s internal lithium battery voltage has dropped below a functional threshold. | Sensor battery has reached end of life (typically 5-10 years). The battery is sealed inside the sensor and is not user-replaceable. | The TPMS light may flash or be solid. Pressures may display intermittently or show incorrect values. A scan tool will specifically report “Low Battery” for the affected sensor(s). | The affected tire pressure sensor(s) must be replaced. Attempting to train a sensor with a low battery will fail. |
| P250F (Audi/VW Group) | Tire Pressure Monitoring System Fault | A generic TPMS system malfunction code. It indicates the control module has detected an internal fault or a problem with the system’s operation. |
| TPMS warning light is illuminated. The system may not display any tire pressures or may show erratic data. |
|
| Sensor ID Not Programmed / No ID Received (Generic aftermarket/scan tool message) | Sensor Not Programmed or No Communication | The vehicle’s TPMS module does not have a valid sensor ID stored for a wheel position, or it cannot read the sensor’s unique ID. |
| One tire pressure reading may be missing or show as “–” on the display. The TPMS light may be on. | Perform a TPMS sensor relearn procedure. This often requires a scan tool or following a specific vehicle manual procedure (e.g., driving above 15 mph for 20 minutes, using a magnet or tool to trigger each sensor in a set order). |
3. General Diagnostic & Troubleshooting Flowchart
When a TPMS warning light appears, follow this logical sequence:
- Check Tire Pressures Manually: Use a reliable tire pressure gauge on all four tires (and spare if equipped) to rule out simple under-inflation or over-inflation, which is the most common cause of a warning light.
- Observe the Light Behavior:
- Solid Light: Usually indicates low/high pressure or a system fault after initial flashing.
- Flashing Light (for 60-90 seconds at startup, then solid): Almost always indicates a sensor communication fault.
- Read DTCs: Connect an OBD-II scanner capable of reading body/chassis codes. Note the specific code(s) and which wheel positions are affected.
- Sensor Activation Test: Use a professional TPMS diagnostic tool to “wake up” and test each sensor. This checks for sensor presence, battery strength, and current readings.
- Physical Inspection: For sensors not responding, visually inspect the valve stem for damage, corrosion, or if the sensor is missing.
- Relearn/Re-program: After any tire service, sensor replacement, or tire rotation, a sensor relearn procedure must be performed.
- Component Replacement: Replace any sensor with a dead battery, physical damage, or one that fails the activation test. In rare cases, replace the TPMS receiver/antenna module.
4. Key Causes Behind TPMS Fault Codes
- Sensor Battery Death: The primary cause of sensor communication faults. Batteries last 5-10 years. A “Low Battery” code is a definitive replacement signal.
- Physical Damage: Impact from potholes, improper handling during tire mounting, or corrosion can destroy sensors.
- Radio Frequency Interference (RFI): Strong signals from aftermarket electronics or external sources can temporarily block sensor signals, causing intermittent faults.
- System Not Relearned: After tire service, if the vehicle’s computer isn’t told the new sensor IDs or their positions, it will report a fault.
- Receiver/Module Failure: Less common, but the vehicle’s TPMS control unit or antenna can fail.
5. Prevention and Maintenance Tips
- Annual Sensor Check: Have a tire shop test sensor battery life and signal strength during routine tire rotation.
- Professional Tire Service: Always remind technicians your vehicle has TPMS to ensure careful handling during tire changes.
- Keep Spare Sensor IDs: Note down the sensor ID numbers (from a scan tool) for your records. This speeds up replacement and programming.
- Address Corrosion: In winter climates, rinse wheels to remove road salt, which can corrode metal valve stems and sensor components.
Conclusion: The most common fault codes in a 4-sensor TPMS system primarily point to sensor communication issues and low batteries. A flashing TPMS warning light is a key indicator of a sensor fault, not just low pressure. Accurate diagnosis requires an OBD-II/TPMS scan tool to read the specific code and identify the affected sensor. While low tire pressure is the most frequent trigger for the warning light, persistent or flashing lights accompanied by these DTCs almost always necessitate sensor inspection, relearn procedures, or replacement to restore proper system function.
