What does the P000A fault code mean?
The P000A fault code, applicable to all car manufacturers, means “A Camshaft Position Slow Response (Bank 1)“.
Background Information: The camshaft controls the opening and closing of the valves. In a variable valve timing system, the electronic camshaft adjusting valve (or oil control valve, OCV) adjusts the camshaft angle by changing the oil pressure to the camshaft adjuster (mechanical type) according to instructions from the engine control module (ECM), ensuring the valves open and close at optimal times. Possible causes of the P000A fault include issues with the intake/left/front camshaft adjusting valve (oil control valve), its circuitry, connectors, excessively dirty oil, or the ECU.
Symptoms of the P000A fault code may include:
- Engine malfunction light illuminated
- Increased emissions
- Poor engine performance
- Engine noise
What are the possible causes of this code?
- Improper oil supply
- Camshaft position sensor malfunction
- Oil control valve failure
- VVT actuator failure
- Timing chain problem
- Wiring problem
- Faulty PCM
How to reset the P000A fault code?

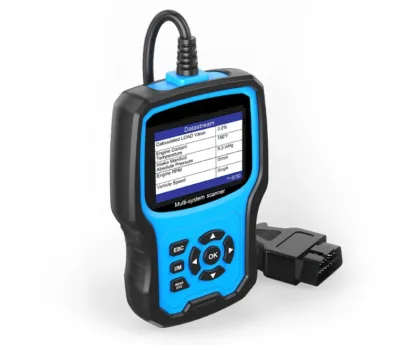

Sometimes, fault codes like P000A appear after recent maintenance and may disappear on their own. To reset the code, use an OBD-II scanner and follow these steps:
Step 1: Connect the scanner to the vehicle’s diagnostic port.
Step 2: Follow the scanner’s instructions to clear the fault code.
If the P000A code reappears, this likely indicates a more persistent problem requiring further diagnosis.
P000A Troubleshooting and Repair
First, check the engine oil level and condition. If the oil level is normal, visually inspect the camshaft position sensor, oil control solenoid valve, and related wiring. Check for loose connections, damaged wiring, etc. If damage is found, repair it if necessary, clear the code, and see if the problem resolves. Next, consult the Technical Service Bulletin (TSB) for this issue. If no abnormalities are found, you need to troubleshoot the system step by step.
The following is a general procedure, as testing for this code varies by vehicle. For accurate system testing, you need to refer to the manufacturer’s diagnostic flowchart. Before proceeding, you need to consult the factory wiring diagram to determine which wires are which.
Testing the Camshaft Position Sensor
Most camshaft position sensors are either Hall effect sensors or permanent magnet sensors. Hall effect sensors have three wires connected: a reference wire, a signal wire, and a ground wire. On the other hand, permanent magnet sensors only have two wires: a signal wire and a ground wire.
Hall Effect Sensor: Determine which wire is the signal return wire. Then, connect a digital multimeter (DMM) to it using a reverse probe test lead. Set the multimeter to DC voltage and connect the black wire to the chassis ground. Start the engine—if the sensor is working properly, you should see the reading fluctuate on the gauges. If not, the sensor is faulty and should be replaced.
Permanent Magnet Sensor: Disconnect the sensor connector and install a multimeter on the sensor terminal. Set the multimeter to AC voltage and start the engine. You should see voltage fluctuations. If not, the sensor is faulty and should be replaced.
Testing the Sensor Circuit
Hall Effect Sensor: First, check the ground side of the circuit. To do this, connect a DC voltage multimeter between the battery positive terminal on the connector harness side and the sensor ground terminal. If the ground is good, the reading should be approximately 12 volts. Next, check the 5-volt reference side of the circuit by connecting a voltage multimeter (DMM) between the battery negative terminal and the sensor reference terminal on the connector harness side. Turn on the vehicle ignition. You should see approximately 5 volts. If neither of these tests yields a satisfactory reading, the circuit requires diagnosis and repair.
Permanent Magnet Sensor: Check the ground side of the circuit. To do this, connect a DMM between the battery positive terminal and the sensor ground terminal on the connector harness side and a DC voltage. If the ground is good, the reading should be approximately 12 volts. If not, the circuit needs to be diagnosed and repaired.
Testing the Oil Control Solenoid Valve
Disconnect the solenoid valve connector. Measure the resistance with a digital multimeter. To do this, connect the multimeter between the solenoid’s B+ terminal and the solenoid’s ground terminal. Compare the resistance measurement to the factory repair specifications. If the multimeter reading is outside the specifications or exceeds the limit (OL), the circuit is open, and the solenoid valve should be replaced. It’s also a good idea to remove the solenoid valve to visually inspect the screen for metal fragments.
Checking the Oil Control Solenoid Valve Circuit
Check the power supply side of the circuit: Disconnect the solenoid valve connector. With the vehicle started, use a digital multimeter set to DC voltage to check the power supply to the solenoid valve (usually 12 volts). To do this, connect the negative multimeter lead to the battery’s negative terminal and the positive multimeter lead to the solenoid’s B+ terminal on the connector harness side. The meter should display 12 volts. If not, the circuit needs to be diagnosed and repaired.
Checking the ground side of the circuit: Disconnect the solenoid valve connector. With the vehicle started, use a digital multimeter set to DC voltage to check the grounding. To do this, connect the positive terminal of the meter to the positive terminal of the battery and the negative terminal to the grounding terminal of the electromagnet on the connector harness side. Use the original manufacturer’s equivalent scan tool to command the solenoid valve to open. The meter should display 12 volts. If not, the circuit requires diagnosis and repair.
Check the timing chain and VVT actuator
If everything has been working so far, the problem may lie with the timing chain, the corresponding actuator, or the VVT actuator. Disassemble the necessary components to access the timing chain and actuator. Check the chain for excessive looseness, broken guide rails, and/or tensioner. Check the actuator for visibly damaged parts, such as worn teeth.
Tip: Other fault codes related to slow camshaft position actuator response include: P000B, P000C, and P000D.
