Motorcycle TPMS Tire Pressure Monitoring System With 2 Tire Pressure External Sensors

Description

Specification:

Features:

• IP65 waterproof.

• Accurately monitor tire pressure throughout the entire process.

• High-precision LCD screen with time display.

• High-volume alarm sound warning.

• Long receiving distance and stable signal.

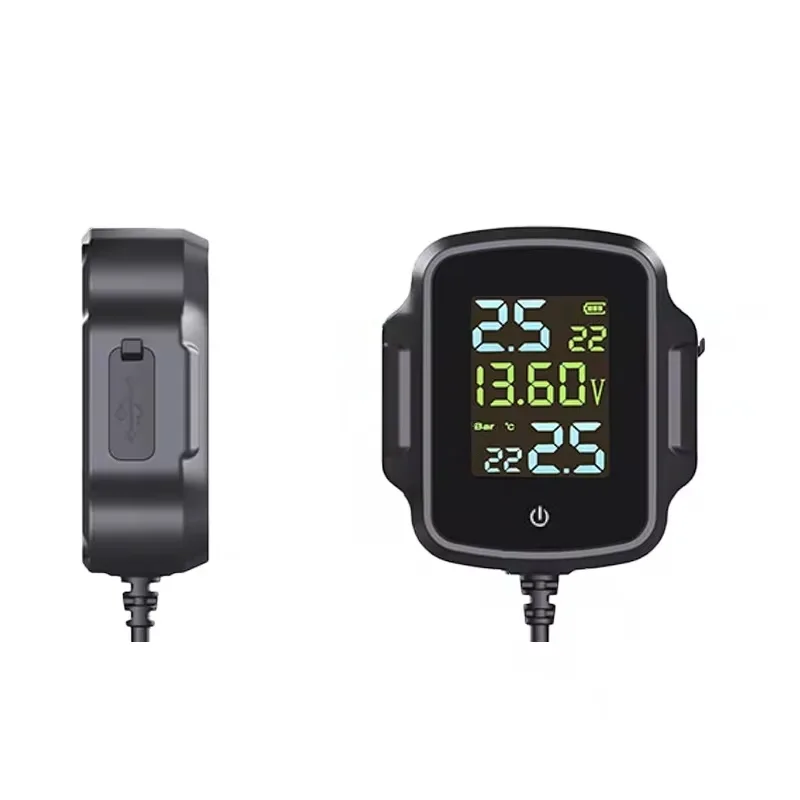

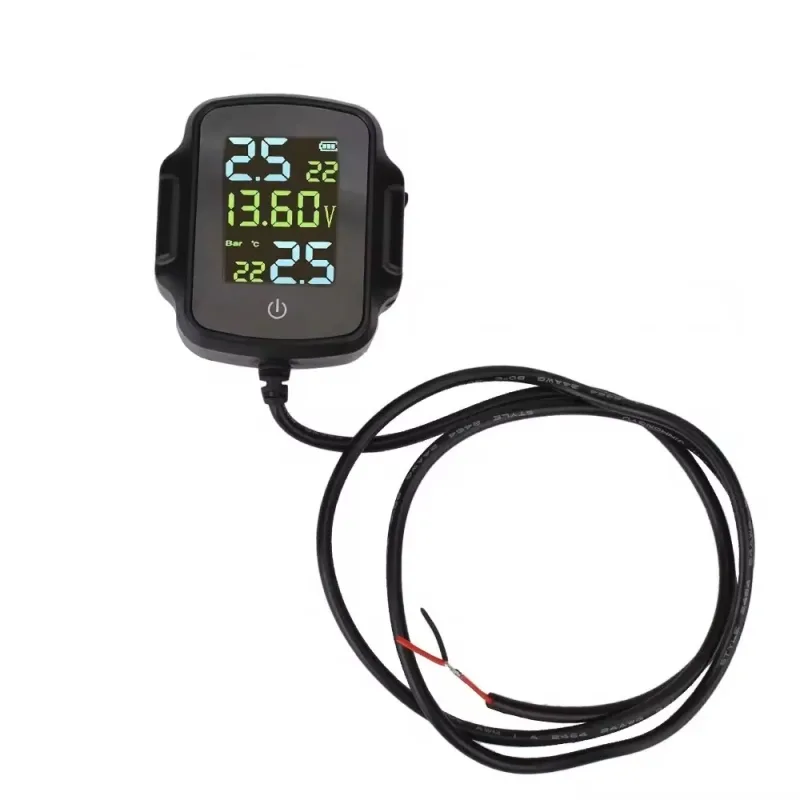

Receiver:

• Working temperature: -20℃~+80℃

• Storage temperature: -30℃~+85℃

• Power-on voltage: DC 1.5V(1 x AAA Battery(Not Included))

• Frequency: 433.92MHz±20.00MHz

Sensor:

• Working temperature: -20℃~+80℃

• Storage temperature: -30℃~+85℃

• Pressure range: 0~3.5bar

• Pressure precision: +/-0.1bar

• Accurancy temperature: +/-3 ℃

• Transmitting power: <10dB

• Frequency: 433.92MHz±20.00MHz

Bracket installation instructions:

1. Unscrew the 2 screws, install it on your motorcycle/electric bike/bicycle and tighten it;

2. Point the mounting head of the bracket toward the position you need and confirm that the bracket is firm;

3. Install the tire pressure receiver on the bracket, tighten it and lock it. Use the ball head to rotate the adjustment knob to move the joint to adjust the appropriate angle.

Warm Tips:

• Regular Sensor Maintenance: Clean external sensors regularly to ensure your motorcycle’s TPMS continues to provide accurate readings without interference from dust or debris.

• Secure Sensor Installation: Double-check that external sensors are securely attached to tire valves to prevent them from coming loose while riding.

• Monitor Battery Life: Keep an eye on the sensor’s battery charge to ensure the tire pressure monitoring system continues to operate. Replace batteries as needed to maintain accurate tire pressure monitoring.

• Calibration Check: After installation, verify that the TPMS is properly calibrated to the motorcycle’s tire specifications to ensure accurate monitoring and alerts.
